OVERVIEW

Dry Inlay is made from 3 main components of chip, ACP glue and RFID Etched Antenna. Not only we would provide the inlay of Etched Al, Etched Cu with substrate of high-temperature-resistant PET, but also the excellent heat resisting property of PI and anti-peel off Paper. Owning rich RF experience and strong ability of design and develop the antenna, we could match your detailed requirement and work out the ideal designs and samples as well as nearly 200 different HF and UHF design currently available in our design stock.

When you choose Boingtech as your RFID provider, you will get:
World-class quality assurance, production capability and extremely optimized cost.

KEY STRENGTHS

• The initial and professional RF label team in China
• Large scale, high capacity and shorter lead time
• Exclusive one-stop RFID tag product and service in the world
• Cost efficient RFID tag product

DRY INLAY

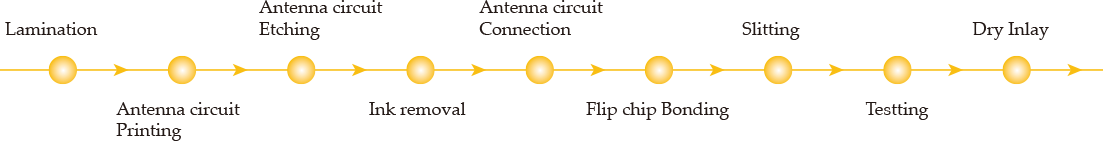

PRODUCTION FLOWCHART

HOT PRODUCTS

HF,13.56MHz, typical confirm to the ISO - 15693, ISO - 14443 standards and NFC protocol. UHF frequency ranges of 860-960MHz (but different areas have different frequency range), accord with the ISO/IEC18000-6C, EPC protocol standard. Current the production provided by Boingtech have been widely applied in a variety of project application, such as NFC, library, access control , contactless Cards, tickets, etc for HF while retail, inventory, logistics for UHF technology.

Antenna No.:1020103
Standard: 13.56MHz
IC Protocol: ISO/IEC15693
Chip: ICODE®SLIX 2
Inlay Size: 45x76mm

Antenna No.:1020418
Standard: 13.56MHz
IC Protocol: ISO/IEC14443
Chip: NTAG®210µ
Inlay Size: Diam.20mm

Antenna No.:1020434
Standard: 13.56MHz
IC Protocol: ISO/IEC14443
Chip: NTAG®213
Inlay Size: Diam.30mm

Antenna No.:1020458
Standard: 13.56MHz
IC Protocol: ISO/IEC14443
Chip: NTAG®213
Inlay Size: 17x8mm

Antenna No.:1020382
Standard: EPC Class 1 Gen 2 RFID tag, ISO/IEC 18000-6C RFID tag
Chip: MonzaR6
Inlay Size: 18x65mm

Antenna No.:1020546
Standard: EPC Class 1 Gen 2 RFID tag,ISO 18000-6C RFID tag
Chip: U CODE® 8
Inlay Size: 30x50mm

Antenna No.:1020573
Standard: EPC Class 1 Gen 2 RFID tag, ISO/IEC18000-6C RFID tag
Chip: U CODE® 8
Inlay Size: 12X72mm

Antenna No.:1020660
Standard: EPC Class 1 Gen 2 RFID tag, ISO/IEC 18000-6C RFID tag
Chip: U CODE® 8
Inlay Size: 8x71mm

OVERVIEW

Dry Inlay is made from 3 main components of chip, ACP glue and RFID Etched Antenna. Not only we would provide the inlay of Etched Al, Etched Cu with substrate of high-temperature-resistant PET, but also the excellent heat resisting property of PI and anti-peel off Paper. Owning rich RF experience and strong ability of design and develop the antenna, we could match your detailed requirement and work out the ideal designs and samples as well as nearly 200 different HF and UHF design currently available in our design stock.

Key Strengths

  • • The initial and professional RF label team in China
    • Large scale, high capacity and shorter lead time
    • Exclusive one-stop RFID tag product and service in the world
    • Cost efficient RFID tag product
DRY INLAY

PRODUCTION FLOWCHART

  • Lamination
  • Antenna circuit

    Printing

  • Antenna circuit

    Etching

  • Ink removal
  • Antenna circuit

    Connection

  • Flip chip Bonding

  • Slitting

  • Testting

  • Dry Inlay

HOT PRODUCTS

HF,13.56MHz, typical confirm to the ISO - 15693, ISO - 14443 standards and NFC protocol. UHF frequency ranges of 860-960MHz (but different areas have different frequency range), accord with the ISO/IEC18000-6C, EPC protocol standard. Current the production provided by Boingtech have been widely applied in a variety of project application, such as NFC, library, access control , contactless Cards, tickets, etc for HF while retail, inventory, logistics for UHF technology.
