OVERVIEW

Wet inlays are inlays that have an adhesive backing stick on silicon liner, and covered with a thin layer of protection film (e.g. PP). It normally comes from dry inlay as the raw material, and it is commonly used to make label.





KEY STRENGTHS

• The early and professional RF label team in China
• Large scale, high capacity and shorter lead time
• Exclusive one-stop RFID tag product and service in the world
• Cost efficient RFID tag product

When you choose Boingtech as your RFID provider, you will get:
World-class quality assurance, production capability and optimized cost
WET INLAY
PRODUCTION FLOWCHART

HOT PRODUCTS

HF,13.56MHz, typical confirm to the ISO - 15693, ISO - 14443 standards and NFC protocol. UHF frequency ranges of 860-960MHz (but different areas have different frequency range), accord with the ISO/IEC18000-6C, EPC protocol standard. Current the production provided by Boingtech have been widely applied in a variety of project application, such as NFC, library, access control , contactless Cards, tickets, etc for HF while retail, inventory, logistics for UHF technology.

Antenna No.:1020258
Standard: 13.56MHz
IC Protocol: ISO/IEC14443
Chip: NTAG 210
Product Size: 23x37mm
Surface Material: PP film

Antenna No.:1020239B
Standard: 13.56MHz
IC Protocol: ISO/IEC15693
Chip: ICODE SLIX
Product Size: 54x86mm
Surface Material: PP film

Antenna No.:1020057
Standard: 13.56MHz
IC Protocol: ISO/IEC15693
Chip: ICDOE SLIX
Product Size: 50x50mm
Surface Material: PP film

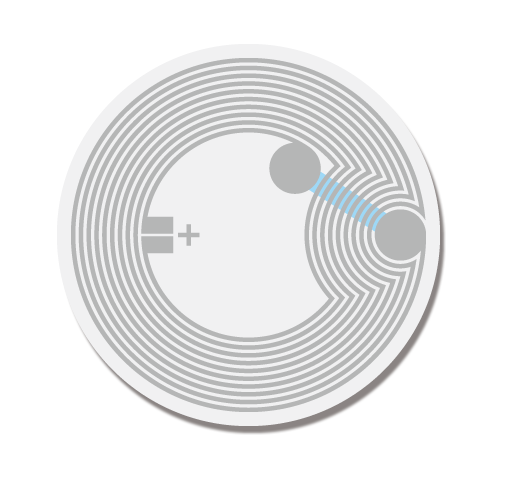

Antenna No.:1020312
Standard: 13.56MHz
IC Protocol: ISO/IEC14443
Chip: NTAG 213
Product Size: Diam.27mm
Surface Material: PP film

Antenna No.:1020337A
Standard: EPC Class 1 Gen 2 RFID tag, ISO 18000-6C RFID tag
Chip: EM4124
Product Size: 22x74mm
Surface Material: PP film

Antenna No.:1020349
Standard: EPC Class 1 Gen 2 RFID tag, ISO 18000-6C RFID tag
Chip: Impinj MonzaR6-P
Product Size: 18x43mm
Surface Material: PP film

Antenna No.:1020350
Standard: EPC Class 1 Gen 2 RFID tag, ISO 18000-6C RFID tag
Chip: U CODE 7
Product Size: 64x24mm
Surface Material: PP film

Antenna No.:1020380
Standard: EPC Class 1 Gen 2 RFID tag, ISO 18000-6C RFID tag
Chip: Impinj MonzaR6-P
Product Size: 34x54mm
Surface Material: PP film

OVERVIEW

Wet inlays are inlays that have an adhesive backing stick on silicon liner, and covered with a thin layer of protection film (e.g. PP). It normally comes from dry inlay as the raw material, and it is commonly used to make label.

KEY STRENGTHS
  • • The early and professional RF label team in China
  • • Large scale, high capacity and shorter lead time
  • • Exclusive one-stop RFID tag product and service in the world
  • • Cost efficient RFID tag product
WET INLAY

PRODUCTION FLOWCHART

  • Flip chip Bonding

  • Converting

  • Roll on glue

  • Die cutting

  • Slitting

  • Testing

  • Wet inlay

HOT PRODUCTS

HF,13.56MHz, typical confirm to the ISO - 15693, ISO - 14443 standards and NFC protocol. UHF frequency ranges of 860-960MHz (but different areas have different frequency range), accord with the ISO/IEC18000-6C, EPC protocol standard. Current the production provided by Boingtech have been widely applied in a variety of project application, such as NFC, library, access control , contactless Cards, tickets, etc for HF while retail, inventory, logistics for UHF technology.
